86-Inch Interactive Nano Blackboard
The 86-inch interactive nano blackboard combines cutting-edge nanotechnology with a sleek design for superior performance and durability.
The 86-inch interactive nano blackboard combines cutting-edge nanotechnology with a sleek design for superior performance and durability.
-
Features:
- Nano-coating for enhanced durability and smooth writing.
- Advanced touch technology with multi-touch support.
- Matte finish for anti-glare and comfortable viewing.
- Integration with teaching software and multimedia resources.
- Stylish, frameless design suitable for modern classrooms and offices.
-

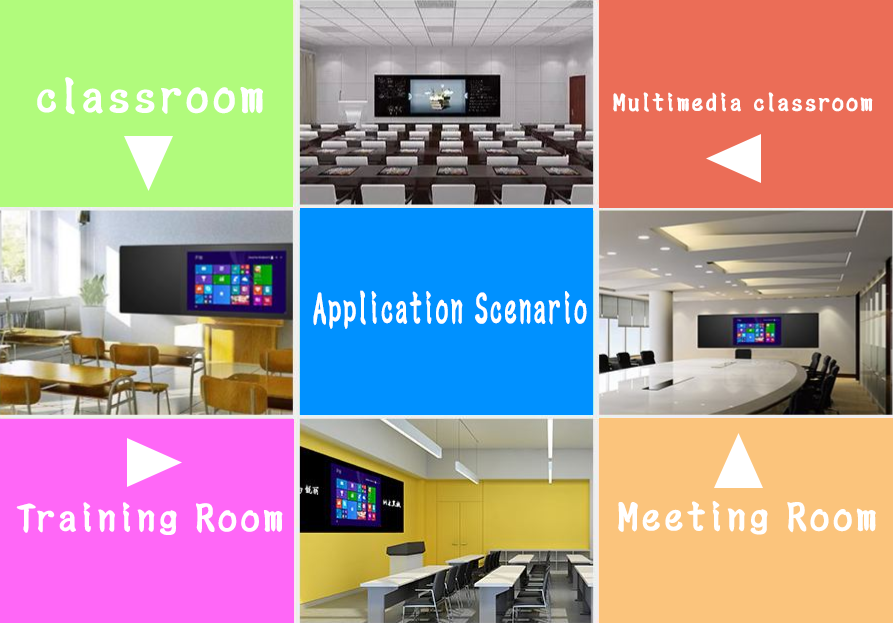

Applications:
- Schools and universities for interactive teaching with high-quality visuals.
- Offices for collaborative meetings and multimedia presentations.
- Training centers for advanced instructional techniques.

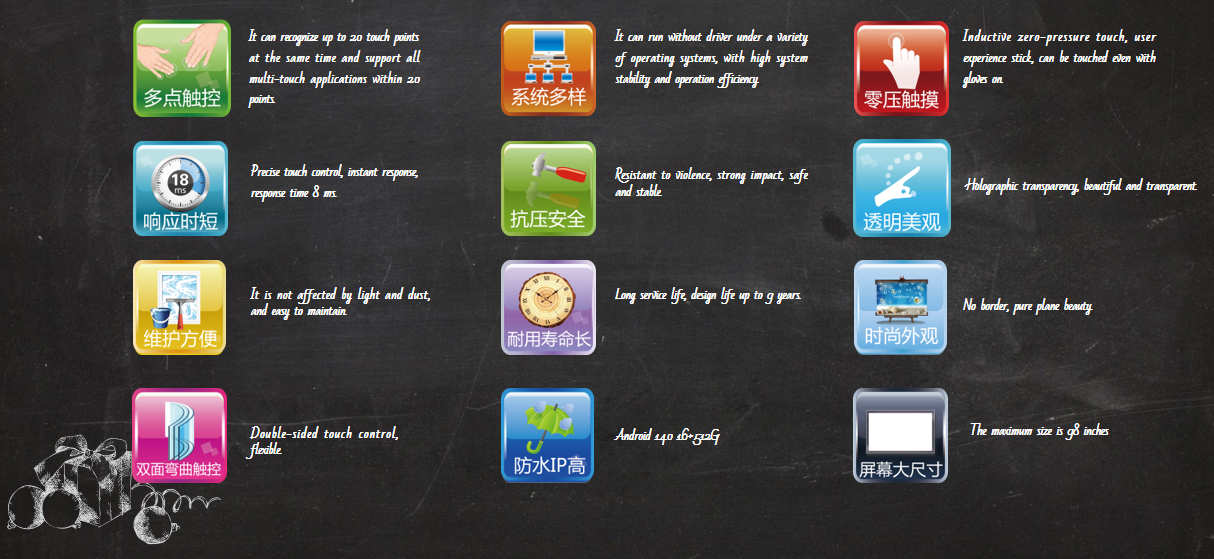

Product Features：
- Nano touch technology：
Supports 20-point touch, response speed <20ms, compatible with Windows/Android systems.
Surface 4mm tempered glass, explosion-proof, waterproof, wear-resistant (7H hardness), chalk writing dust-free. - Multi-mode teaching integration：
Traditional blackboard (chalk/water pen writing) and smart blackboard (4K display, PPT playback, screen projection) switch with one click.
Built-in whiteboard software, supports dual-pen writing, QR code scanning and sharing pen). - Eye protection and health design：
Anti-glare nano coating, filters 80% of harmful blue light, 178° wide viewing angle.
Dust-free writing, reduces respiratory irritation, and meets education and health standards. - Intelligent system and scalability：
Android 14.0 system + optional plug-in PC module (10th generation i5 processor), supports remote teaching and multi-device screen projection.
Built-in 48 million pixel camera + 8 array microphones, suitable for online meetings and recorded courses. - Modular installation and maintenance：
Wall-mounted design, thickness ≤ 9.6cm, short construction period, does not damage the original classroom layout
Product Advantages
- Improved teaching efficiency:
Touch interaction + multimedia synchronization superposition, student participation increased by 30%. - Environmentally friendly and durable:：
Tempered glass life ≥ 50,000 hours, supporting more than 10 years of high-frequency use. - Cost optimization：
Wiring-free design, maintenance costs reduced by 50%. - Technology leadership:
The world's first In Cell nano-bonding process, touch sensitivity comparable to smartphones.
Product Specifications

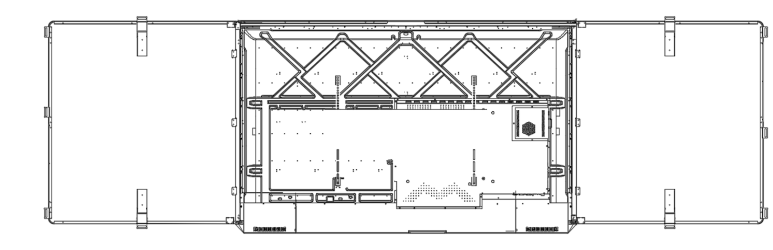

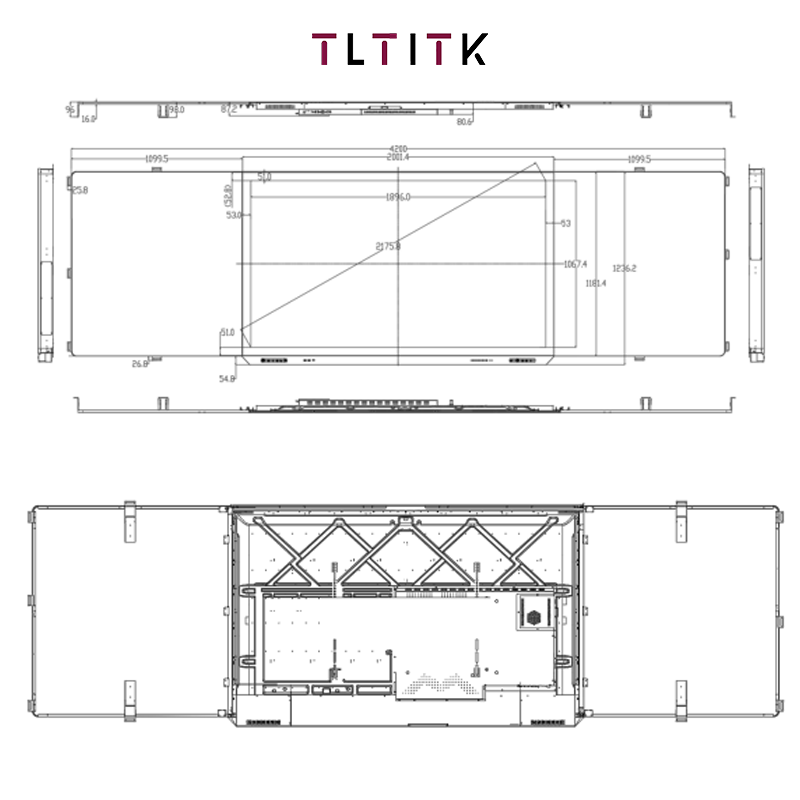

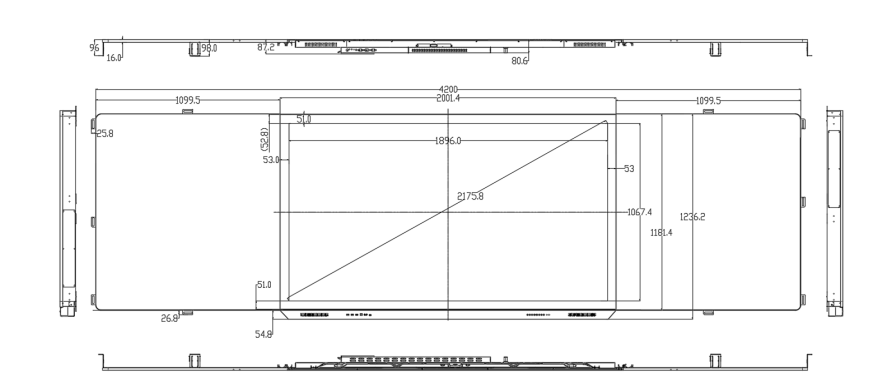

1. Overall Appearance

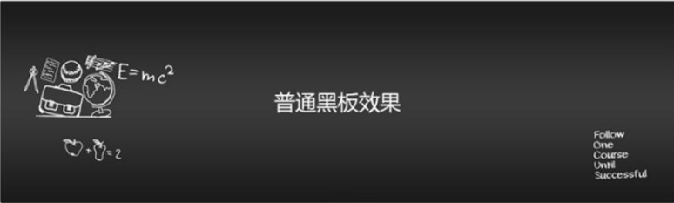

Before starting
After booting
| Display parameters | |
|
Response time |
8ms |
|
Aspect ratio |
16:9 |
|
Maximum display size |
1897*1068mm |
|
Resolution |
3840（H）×2160（V） |
|
Pixel pitch |
0. 4935×0. 4935 mm |
|
Refresh rate |
60Hz |
|
Color |
1.07B (10bit) |
|
Color gamut NTSC (Typ) |
72% |
|
Contrast (Typ) |
5000:1 |
|
Viewing angle |
178°(H/V) |
|
Backlight type |
DLED |
|
Screen brightness (Typ) |
350cd/m2 |
|
Lifespan |
≥50000小时 |
